A normal DC motor would have only two terminals. Since these terminals are connected together only through a coil they have not polarity. Revering the connection will only reverse the direction of the motor

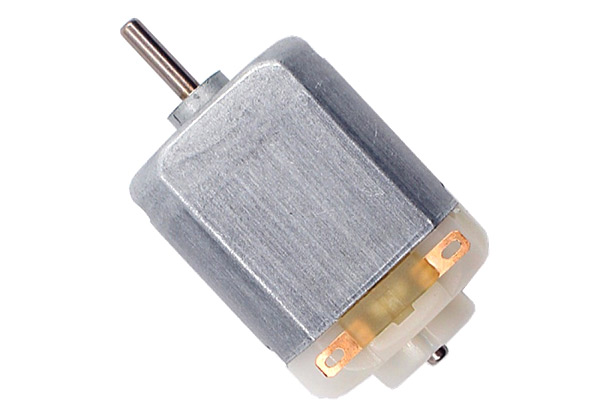

- Standard 130 Type DC motor
- Operating Voltage: 4.5V to 9V
- Recommended/Rated Voltage: 6V
- Current at No load: 70mA (max)
- No-load Speed: 9000 rpm
- Loaded current: 250mA (approx)
- Rated Load: 10g*cm
- Motor Size: 27.5mm x 20mm x 15mm
- Weight: 17 grams
How to use the Hobby DC motor
As the name suggests the Hobby DC motor is highly used by hobbyists who start exploring electronics. Hence this motor is very simple and easy to use. You can use any normal 9V battery or even a 5V supply since this motor has a operating range from 4.5V to 9V. In order to make it rotate just connect the positive ( ) side of battery to one terminal and the Negative (-) sign of the battery to the other end and you should see the motor rotating. If you want to reverse the speed of the motor simply interchange the terminals and direction will also be reversed.
In order to control the speed of the motor you have to vary the voltage supplied to the Motor the easiest way to do this is using a Potentiometer. There are also many other way to achieve this.
Also remember that the motor can consume upto 250mA during loaded conditions so make sure you supply could source it. If you are controlling it through any Digital IC or any Micro controller you should use a motor driver IC like L293D or ULN 2003 these IC’s will also let you to control the direction of the motor easily.
- Toy cars
- Windmill projects
- Basic Electronics projects
- As Robot wheels
