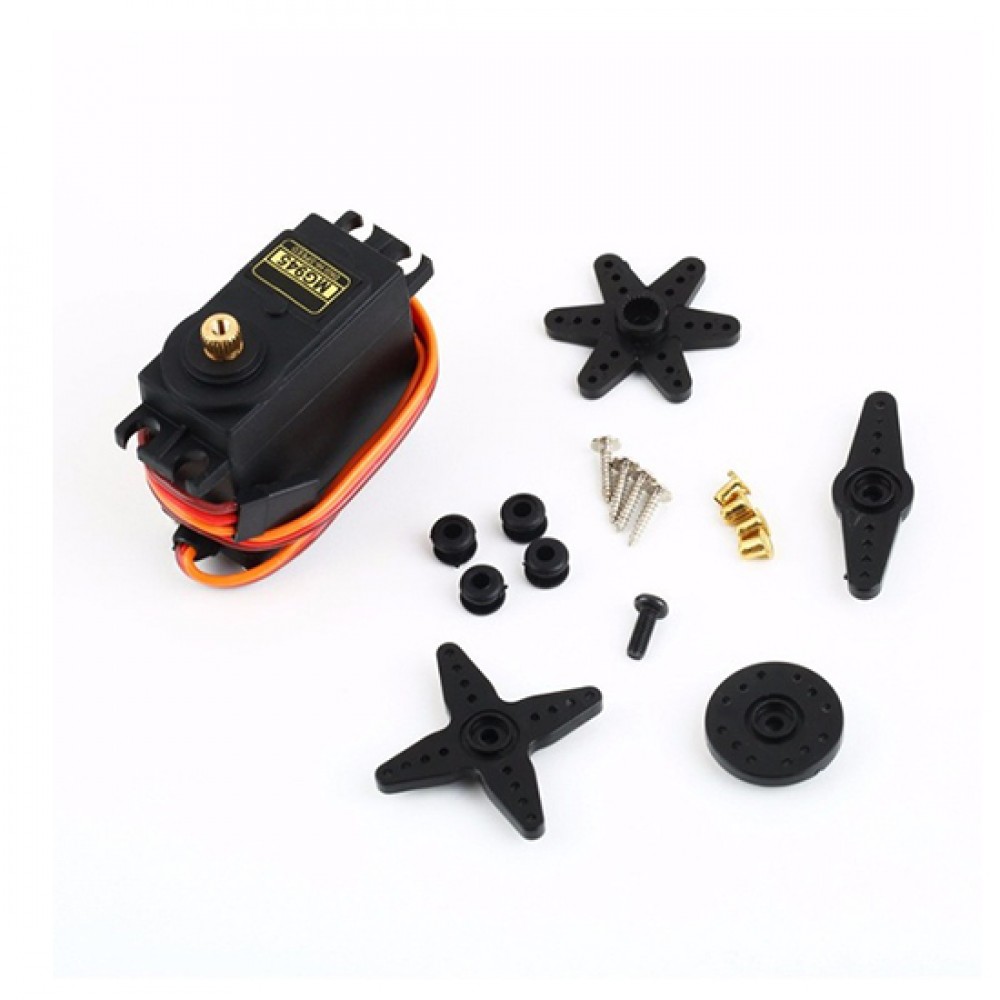

MG945 Metal Gear Servo Motor in Pakistan

MG945 Metal Gear Servo Motor in Pakistan




MG945 has a completely new redesigned PCB and IC control system to provide more accuracy. Its internal gearing and motor are also upgraded to improve dead bandwidth and centering. The MG945 servo is far more accurate and safe to use in aircraft which require precise servo movements and perfect centering. Super strong and beefy with very little signs of flexing.


  • Power Supply: Through External Adapter
  • Stable and Shock Proof
  • Great for truck, Boat, Racing Car, Helicopter and Airplane.
  • Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc.


  • Dimension : 40.6mm x 19.8mm x 42.9mm
  • Weight : 55g
  • Package weight: 74g
  • Operating Speed : 0.18sec / 60 degrees (6.0V no load)
  • Stall Torque : 15 kg/cm (208.3 oz-in) at 6V
  • Dead band width: 4ms
  • Operation Voltage : 4.8 – 7.2Volts
  • Temperature range: 1 to 55
  • Gear Type: All Metal Gears
  • Connector Wire: 11.81″ (300mm)
  • Color: Black

Package Include:

  • 1 x MG945 Metal Gear Servo Motor

Additional information

Weight 0.1 kg
