Description

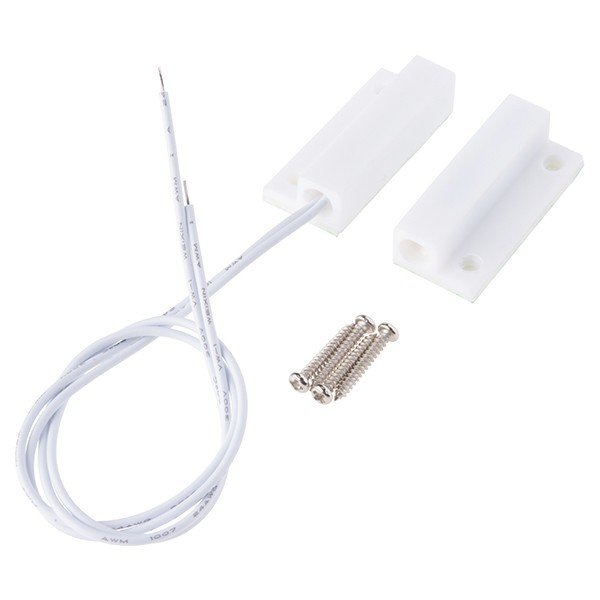

- This is the Magnetic Door Switch Set.A small reed switch assembly specifically designed to alert you when doors, drawers, or any other aperture opens.
- These types of switches are primarily used in home security systems.
- One half of the assembly set on a window or door frame and the other attached to the window or door itself.
- When the switch set is separated from each other the contact is broken and triggers an alarm.
- When each magnet piece comes within 20mm of each other .They complete the circuit with the internal reed switches.
Each set can accept a max voltage of up to 100V at 500mA. Additionally each set is housed in durable ABS plastic and with the included screws, can easily mount to most surfaces.
Dimensions: 34 × 41 × 6.5 mm
Includes:
- 1x Magnetic Door Switch Set
- 4x Mounting Screw
Features:
- Max Voltage: ≤100VDC
- Max Current: ≤500mA
- Max Rating: ≤10W
- Gap: 20±5mm
