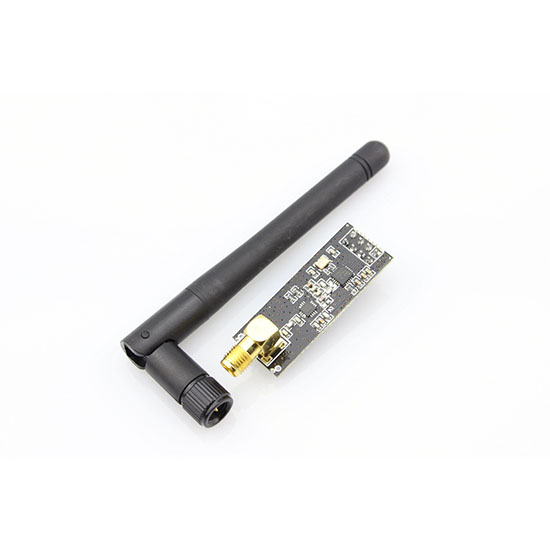

NRF24L01+PA+LNA Wireless Transceiver Module
Category:

NRF24L01+PA+LNA Wireless Transceiver Module

SKU: Mod#13

650.00

Quantity

Description

NRF24L01P PA LNA wireless module operates in Free license 2.4G ISM band, you can do point to point application and can also be composed of star network. The Data transmission chip NRF24L01 , and match with the department’s professional design, Add the the chip of power PA and LNA, RF switch, band pass filter composed of a professional full two-way RF power amplifier, making the effective communication distance has been greatly expanded. Small size: 45.54mm x 16.46mm, easy to embed in any space-constrained products, customers can use the SPI port of Arduino or any other MCU to control NRF24L01P PA LNA, Wireless module to complete long distance wireless data transmission system design.
Features:
It uses 2.4G global open ISM band, with license free.
Transmit power is greater than 20 dbm.Support six-channel data reception. 2Mbit/s speed makes high-quality VoIP possible Low
operating voltage: 2.7 to 3.6V
Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal; SPI interface facilitates the communication with MCU I/O port.
Facilitate the development for customers, without development RF part.
Software programming is fully compatible with NRF24L01 modules.Size: 37.4mm * 16.6mm
Applications: remote control, telemetry, wireless meter reading, access control systems, residential paging, industrial data acquisition systems, wireless tags, identification, contactless RF smart card, small wireless data terminal, fire safety systems, wireless remote control systems, bio-signal acquisition, wireless 232, wireless 422/485 data communications.
Pin Definition:
PIN Function Direction
Pin1 GND Ground
Pin2 VCC VCC, 1.9~3.6V
Pin3 CE Operating Mode,RX/TX In
Pin4 CSN SPI chip select In
Pin5 SCK SPI clock In
Pin6 MOSI SPI Input In
Pin7 MISO SPI Output Out
Pin8 IROAM Interrupt Output Out
Specification:
  • Operating Frequency: 2400MHz ~ 2524MHz
  • Modulation: GMSK
  • Transmit power: more than 20 dbm, 50Ω
  • Receiver sensitivity:-95dbm
  • Operating voltage: 2.7V ~ 3.6V
  • Max Emission current: 115mA
  • Max Receive current: 45mA
  • Operating temperature: -45 degrees to 85 degrees
  • Storage temperature: -45 degrees to 125 degrees
  • Gain Of PA: 20 dB
  • Gain Of LNA: 10 dB
