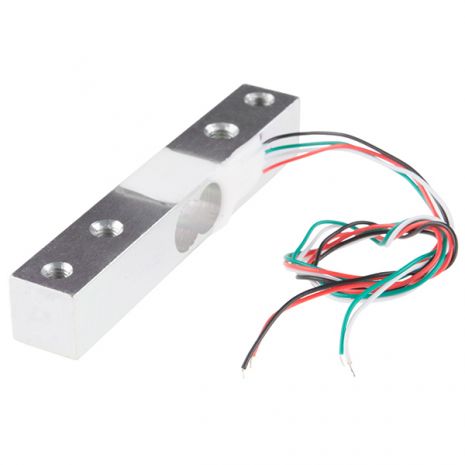

Weight Sensor 1kg Load Cell Sensor

SKU: Sen#23




Four lead wires, easy to use, plus driving voltage 5-10V, force changes in the output voltage signal directly.
Installation: Sensor end through the screw hole fixed and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.

Product Name: kitchen scales weighing sensor
Model: YZC-131
Material: Aluminum
Dimensions: 75×12.7×12.7mm/2.95 x 0.51 x 0.51″”(L x W x H)
Range: 1kg
Rated output 1.0 ± 0.1mV / V
Nonlinear ± 0.03% F.S
Hysteresis 0.03% F.S
Repeatability 0.03% F.S
Creep (5 minutes) 0.05% F.S
Zero Balance ± 0.1 mV / V
Input impedance 1066 ± 10% Ω
Output Impedance 1000 ± 10% Ω
Insulation resistance: 2000 MΩ
Operating temperature range -20 ~ 65°C
Recommended for: kitchen scales

Package Include:

1 x Electronic Scale Weighing Sensor

Additional information

Weight 0.1 kg
