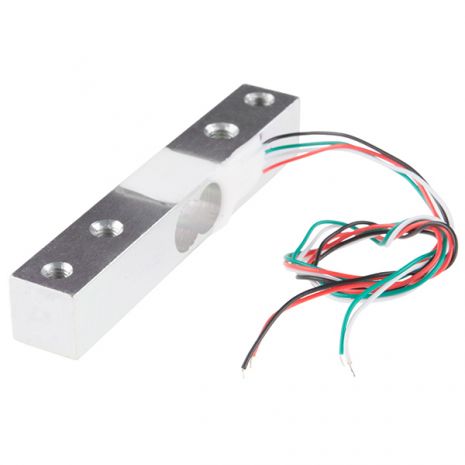

Weight Sensor 10 kg Load Cell Sensor

SKU: Sen#25




Four lead wires, easy to use, plus driving voltage 5-10V, force changes in the output voltage signal directly.
Installation: Sensor end through the screw hole fixed and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.

  1. Rated Load: 10Kg
  2. Rated Output: 1.0 ±0.15mV/V
  3. Zero Output: ±0.1mV/V
  4. Cree: 0.03%F.S./30min
  5. Input End: Red , Black-
  6. Output End: Green , White-
  7. Input Impedance: 1115±10% Ω
  8. Output Impedance: 1000±10% Ω
  9. Maximum working voltage: 15V DC
  10. Operating temperature range: -20~60°C
  11. Total Size: 80 x 13 x 13mm/3.14 x 0.51 x 0.51″(L X W X H)
