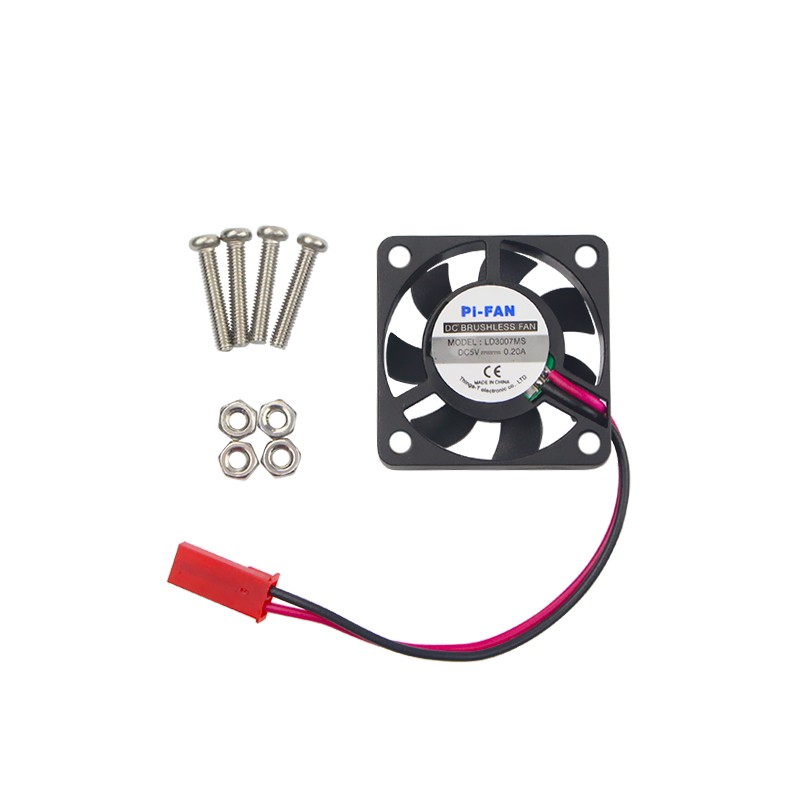

Raspberry PI Fan 3.3CM 5V

Raspberry PI Fan 3.3CM 5V





Although Raspberry Pi is a cool computer, keep it truly cool with a dedicated 5V, 40mm square fan. Ideal when you’re running it near 100% load all the time. Mounts to our Raspberry?Pi S.A.F.E. (for B and V2)?top plate (4-40 x 5/8″ bolts & nuts not included).

Installation Procedure:

We’ve successfully used the onboard expansion port header to power our fan installations. Lift the retainer tab on the ground (black lead) and pull it out, and plug the connector (with the remaining red wire) to the corner-most pin. The ground pin can be then mounted to the pin 2 spaces down from it to give you a solid 5V for the fan.
Note:?It’s always better to run the fan from a separate power supply, and this hack works best with a?strong 5V 2A power supply?feeding the Pi.

40 x 40 x 10mm
5V 140mA
Brushless sleeved 6000RPM DC motor
9 blade fan, 6.8CFM
35,000 hour life
130mm cable
Can be powered by mushing the connector onto the 5V/Gnd pins of the Pi expansion port

Additional information

Weight 0.1 kg
