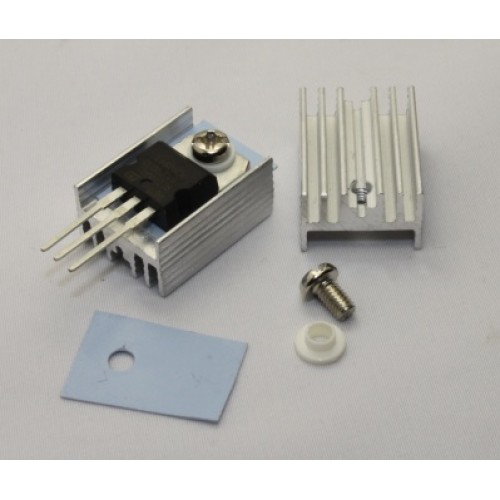

LM7805 Voltage Regulator with Heatsink

LM7805 Voltage Regulator with Heatsink

SKU: Comp#12




L7805, using TO-220 package.

Pressure drop: 2V

Number of outputs: 1

Number of pins: 3

Operating temperature range: 0 ° C to 150 ° C

Operating temperature minimum: 0 ° C

Operating temperature max: 150 ° C

Device label: 7805

Device Tag: L7805CV

Tolerance, operating voltage : 4%

Voltage Rectifier Type: Fixed

Power supply voltage maximum: 20V

Power supply voltage minimum: 8V

Chip label: 7805

Surface Mount Device: Through Hole Mounting

The maximum input voltage is: 35V

Input voltage minimum: 7V

Output voltage max: 5V

Maximum output current: 1.5A

Voltage: 5V

Output voltage: 5VWith heat sink L7805CV L7805 7805 Voltage Regulator 5V TO-220

Additional information

Weight 0.1 kg
