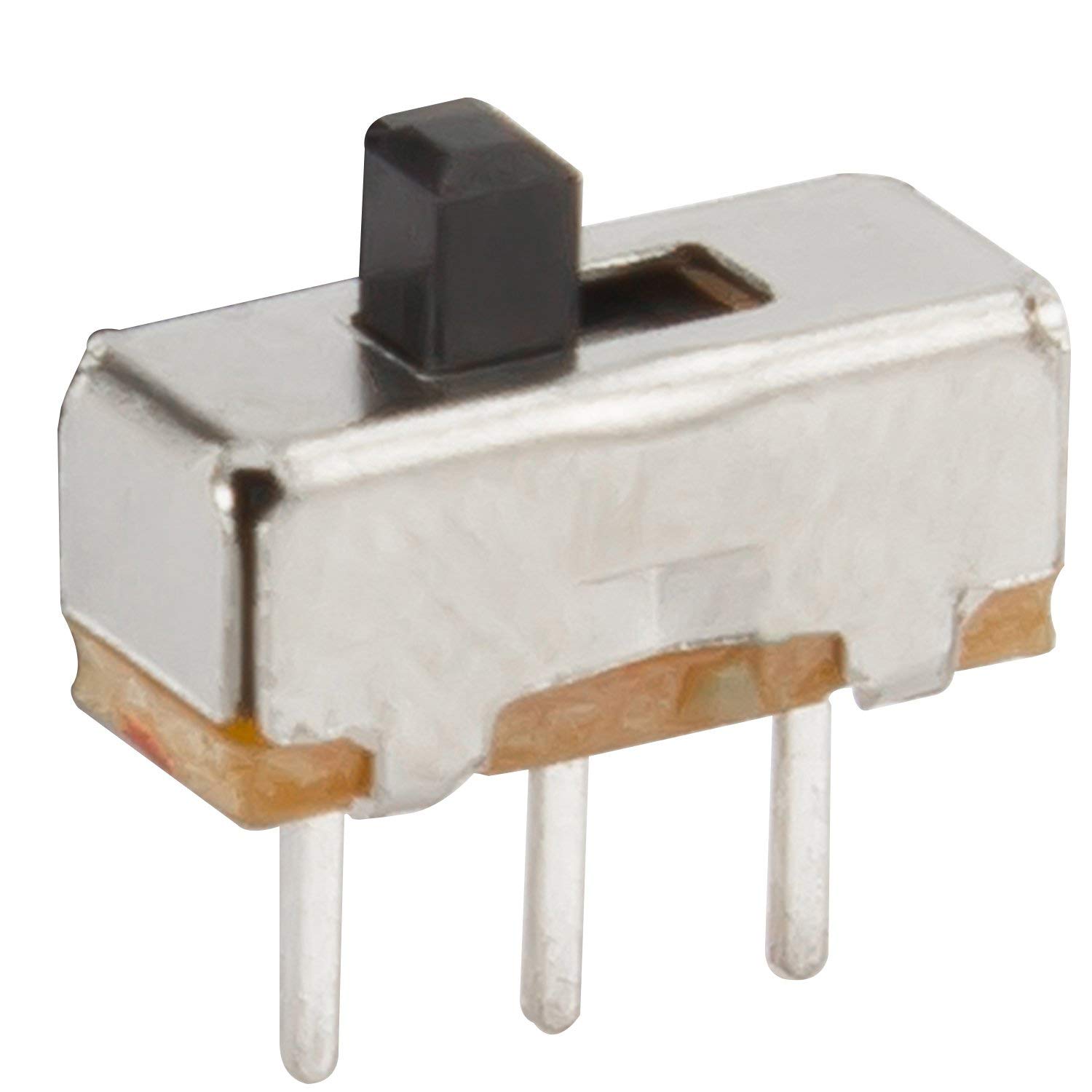

3 Pin 2 Position Panel Mount Micro Vertical Slide Switch High Knob In Pakistan

 8

Close
Price Summary
  •  8
  •  8
  •  8
In Stock
Compare
Description

This small single-pole, double-throw (SPDT) slide switches are rated for 300 mA at 50 VDC and make great on/off power switches for low power electronics.3 Pin 2 Position Panel Mount Micro Vertical Slide Switch High Knob In Pakistan

Product Name Slide Switch
Model SS12D01
Type 1 Pole 2 Throw, 2 Position
Terminal Quantity 3 Pcs
Working Power 0.3A 50V DC
Contact Resistance 30mΩ Max
Insulation Resistance 100mΩ Min at 500V DC
Withstand Voltage AC 500V for 1 min
Terminal Size(Each One) 3.3 x 0.5mm / 0.13″ x 0.02″( L * W)
Pins Pitch 2.54mm / 0.1″
Main Body Size(not Include Knob & Pins) 8.6 x 4.4 x 4mm / 0.33″ x 0.17″ x 0.16″(L * W* H)
Switch Total Size 8.6 x 4.4 x 12.2mm / 0.33″ x 0.17″ x 0.48″(L * W* H)
Knob Size 2 x 2 x 5.3mm / 0.07″ x 0.07″ x 0.2″(L * W * H)
Material(External) Plastic, Metal
Main Color Silver Tone, Black
Weight 9g



Additional information
Weight 0.1 kg
