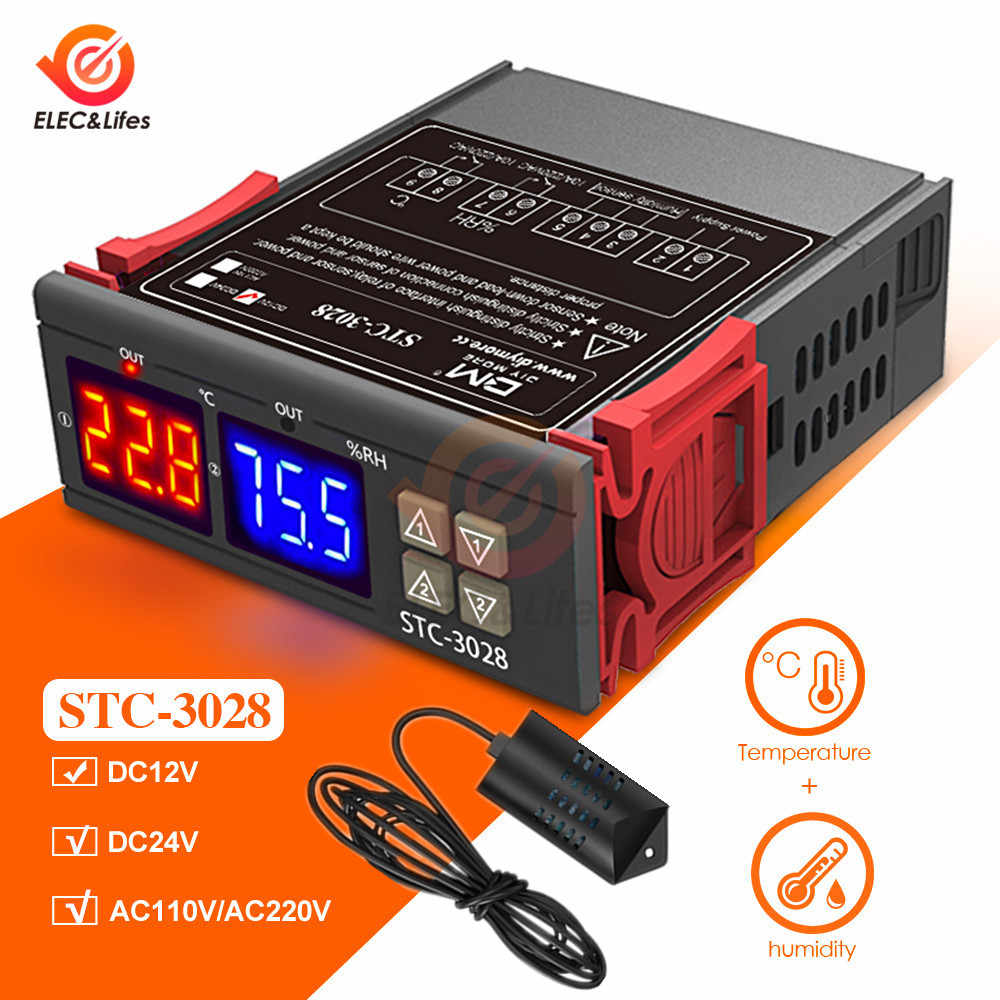

Temperature Humidity controller STC-3028 is an ABS flame retardant plastic shell, safer to use. This digital temperature controller has a microcomputer intelligent digital display thermostat, dual display dual temperature This incubator temperature controller thermometer is suitable for automatic switching of refrigeration and heating devices such as seafood machines and cooling water machines. STC3028 thermostat hygrometer , the large and clear digital display shows measuring temperature, high accuracy of temperature measuring and controlling. This dual display digital temperature controller thermostat with a wide temperature measuring range and controlling range comes with an integrated sensor.
- Can display the temperature and humidity simultaneously.
- High accuracy and wide measuring.
- Stable performance supports long time use.
- With a large and clear display for better readability.
- Applied for cabinet control, seedling heat mat, aquarium, pet breeding, incubation, BBQ, electric radiator, electric oven, etc.
- Front panel size: 75×34.5(mm)
- Assembly size: 71×29(mm)
- Product size: 75×34.5×85 (mm)
- Sensor length: 1 meter (including the probe)
- Range: -55-120 Celsius
- Accuracy: 0.1 Celsius
- Sensor error delay: 1 minute
- Power supply: DC 12V DC 24V AC 110-220V
- Sensor: NTC sensor Relay contact
- capacity: Cool (10A/240VAC).
- Heat (10A-240VAC)
- Ambient temperature: 0-60 Celsius
- Storage temperature: -30-75 Celsius
- Relative humidity: 20-85% (No condensate)
How to Use:
Set startup temperature(humidity): Press the “up” button once to display the starting temperature(humidity). Long press the “up” button for about 3 seconds, The required temperature(humidity) can be set by the up and down keys
Set the stop temperature(humidity):
Press the “down” button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys
Temperature ( humidity) correction:
Press the “up” and “down buttons at the same time.
Set startup temperature:
Press the “up” button to the starting temperature. Long press the “up” button about 3 seconds, the desired temperature can be keys through the up and down
The stop temperature:
Press the button to the stop temperature. Long press button about 3 seconds and the stop temperature number flashes. The desired temperature can be tested by the up and down
- 1 x STC3028 Temperature Humidity Controller
- 1 x Temperature Probe
