2.4 inch TFT LCD Shield SD Socket Touch Panel Module for Arduino UNO

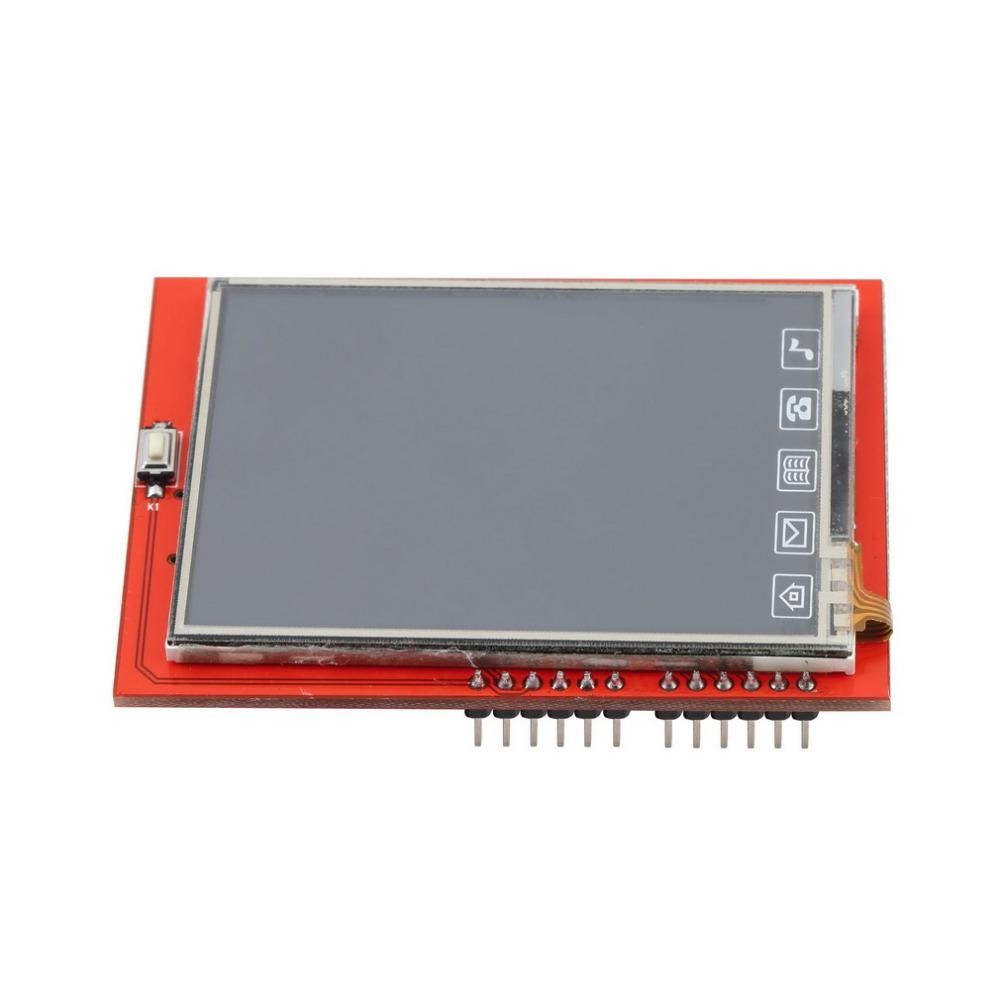

2.4 inch TFT LCD Shield for Arduino UNO





The 2.4″ Colour TFT display with micro SD card slot is now available as a SHIELD for Arduino UNO.It has a four wire resistive touch screen, a micro SD card socket,a reset switch and a convenient arduino Uno shield footprint.


  • 2.4 inch LCD TFT display has Bright, 4 white-LED backlight .
  • Colorful, 18-bit 262,000 different shades
  • 4-wire resistive touchscreen
  • 240 x 320 resolution
  • Spfd5408 controller with built in video RAM buffer
  • 8 bit digital interface, plus 4 control lines
  • Uses digital pins 5-13 and analog 0-3. Digital pins 2, 3 and analog 4 and 5 are available  for user defined purpose.. Pin 12 is available if  micro SD is not used.
  • 5V compatible, can be used  with 3.3V or 5V logic
  • Size: 71 x 52 x 7 mm

Additional information

Weight 0.1 kg
