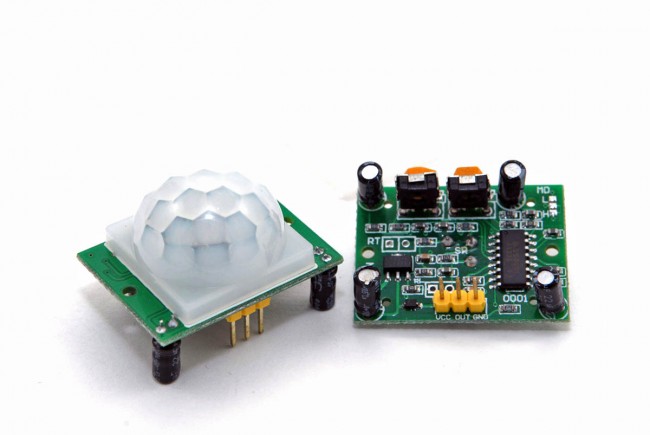

PIR Motion Sensor Module HCSR501

PIR Motion Sensor Module HCSR501

SKU: Sen#13




Passive Infrared Sensor Modules
Infrared sensor with control circuit board
The sensitivity and holding time can be adjusted
Detecting Range: Approx. 7m / 23 feet
Detecting Angle: Less than 100 degrees
Working Voltage Range: DC 5V- 20V
Quiescent Current: Less than 50uA
Level Output Voltage: High 3V / Low 0V
Working Temperature: -15 to 70 degrees C
Trigger Method: L unrepeatable trigger / H repeatable trigger
PCB Size: Approx. 32mm x 24mm / 1.3 x 0.9 inch

Additional information

Weight 0.1 kg
