Hall Effect Sensor Module
Category:

Hall Effect Sensor Module in Pakistan

SKU: Sen-7

180.00

Quantity

Description

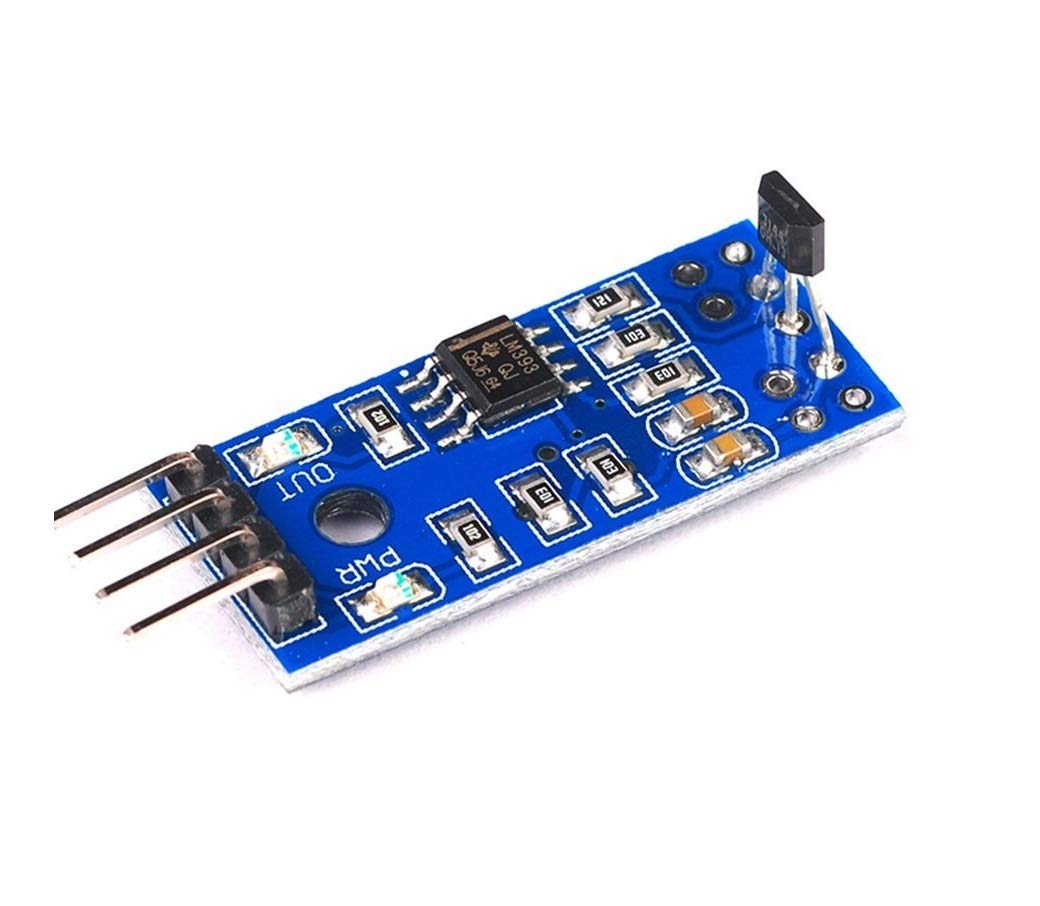

3141 Hall Effect Sensor Module ,These Hall-effect switches are monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to 150°C, and are more stable with both temperature and supply voltage changes. The unipolar switching characteristic makes these devices ideal for use with a simple bar or rod magnet. The four basic devices (3141, 3142, 3143, and 3144) are identical except for magnetic switch points.

Each device includes a voltage regulator for operation with supply voltages of 4.5 to 24 volts, reverse battery protection diode, quadratic Hall-voltage generator, temperature compensation circuitry, small- signal amplifier, Schmitt trigger, and an open-collector output to sink up to 25 mA. With suitable output pull up, they can be used with  bipolar or CMOS logic circuits. The A3141– and A3142– are improved replacements for the UGN/UGS3140–; the A3144– is the improved replacement for the UGN/UGS3120–

The first character of the part number suffix determines the device operating temperature range. Suffix ‘E–’ is for the automotive and industrial temperature range of -40°C to 85°C. Suffix ‘L–’ is for the automotive and military temperature range of -40°C to 150°C. Three package styles provide a magnetically optimized package for most

applications. Suffix ‘–LT’ is a miniature SOT89/TO-243AA transistor package for surface-mount applications; suffix ‘–UA’ is a three-lead ultra-mini-SIP.

Hall Effect Sensor Module Features:-

  1. AEC-Q100 automotive qualified
  2. Continuous-time operation
  3. Fast power-on time
  4. Low noise
  5. Stable operation over full operating temperature range
  6. Reverse battery protection
  7. Solid-state reliability
  8. Factory-programmed at end-of-line for optimum performance
  9. Robust EMC performance
  10. High ESD rating
  11. Regulator stability without a bypass capacitor

Package Includes:

1x 3141 Hall Effect Sensor Module



Additional information

Weight 0.1 kg
